AD/DA | 32 bit |
Max Sample Rate | 192 kHz |
Total Number of Inputs | 2 |
Total Number of Outputs | 2 |
Mic Preamp | D-PRE |
Mic Inputs | 2 |
Inputs with Line Level | 2 |
Inputs with HI-Z | 1 |
Analog Inputs TRS | 0 |
Analog Inputs Combo | 2 |
Analog Outputs TRS | 2 |
Monitoring | Latency free monitoring with FX |
Onboard DSP | SSP 3 |
True Integrated Monitoring with FX in Cubase | YES |
High-Pass Filter | Yes |
REV-X Reverb | Yes |
Sweet Spot Morphing Channel Strip | Yes |
Phantom Power | 2 |

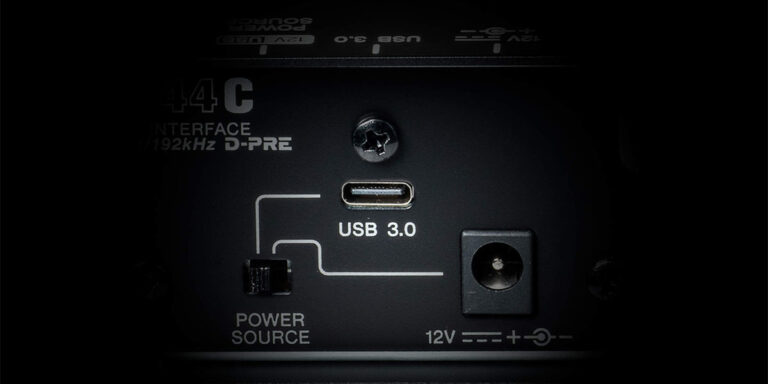

Connection Type | USB Type-C |
Design | Desktop (1/3 19″, 1HU) |
Headphone Output | 1 |
Casing | Full metal casing |
Dimensions | 159 x 159 x 47 mm (Width x Depth x Height) |
Net Weight | 1,000 g |
Power Supply | USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included) |
Color | Green |
---|
